DIMENSION :

34" x 7.5" ( 863.6 mm x 184.15 mm )

WEIGHT :

25 LBS ( 11.3 kg )

MATERIAL :

Precision Injection Molded

MOTOR :

High Efficiency DC Motor (51 Watts)

CFM :

4500 CFM

POWER :

220 - 240V , 50/60Hz

CONTROL :

Wireless 6-Speed Remote

QUIET OPERATION :

43 DB @ High Speed

LIGHTING :

LED (Warm - 3000K / White - 6000K) (15 Watts)

CERTIFICATES :

US PATENTS (D652, 1335, 29/341, 859, 29/391, 310, 13/6629, 910)
CE  CB

PACKAGING :

17 KG

LIMITED WARRANTY* :

DC Motor (5 Years for Residential | 3 Years for Commercial)

Electronics | LED | Remote  (2 Years)

( Discolouration due to climate is not covered in warrenty)

*Please refer to terms and condition for limited warranty full definition.

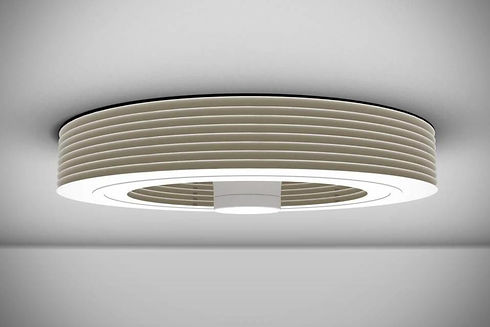

SNOW WHITE - 34" EXHALE FAN

The Perfect White with a white base ring sits quietly giving you a peaceful feel.
> Choose to go with a Warm White LED or Cool White LED.
> Priced per unit (includes delivery and basic installation)

CHARCOAL BLACK - 34" EXHALE FAN

Elegant Charcoal with grey base ring, a perfect match to see the details.
> Choose to go with a Warm White LED or Cool White LED.
> Priced per unit (includes delivery and basic installation)

MOUTING DISC COVER

DC MOTOR

FALSE CEILING GUIDE

MOUNTING HARWARE

WIRELESS REMOTE

E-INSTALLATION MANUAL
